Item No.: AP-TI003
  • Anpviz 热力物联网方案(热成像体温测量应用)-V1.0Download
INQUIRY
Description Specification Features

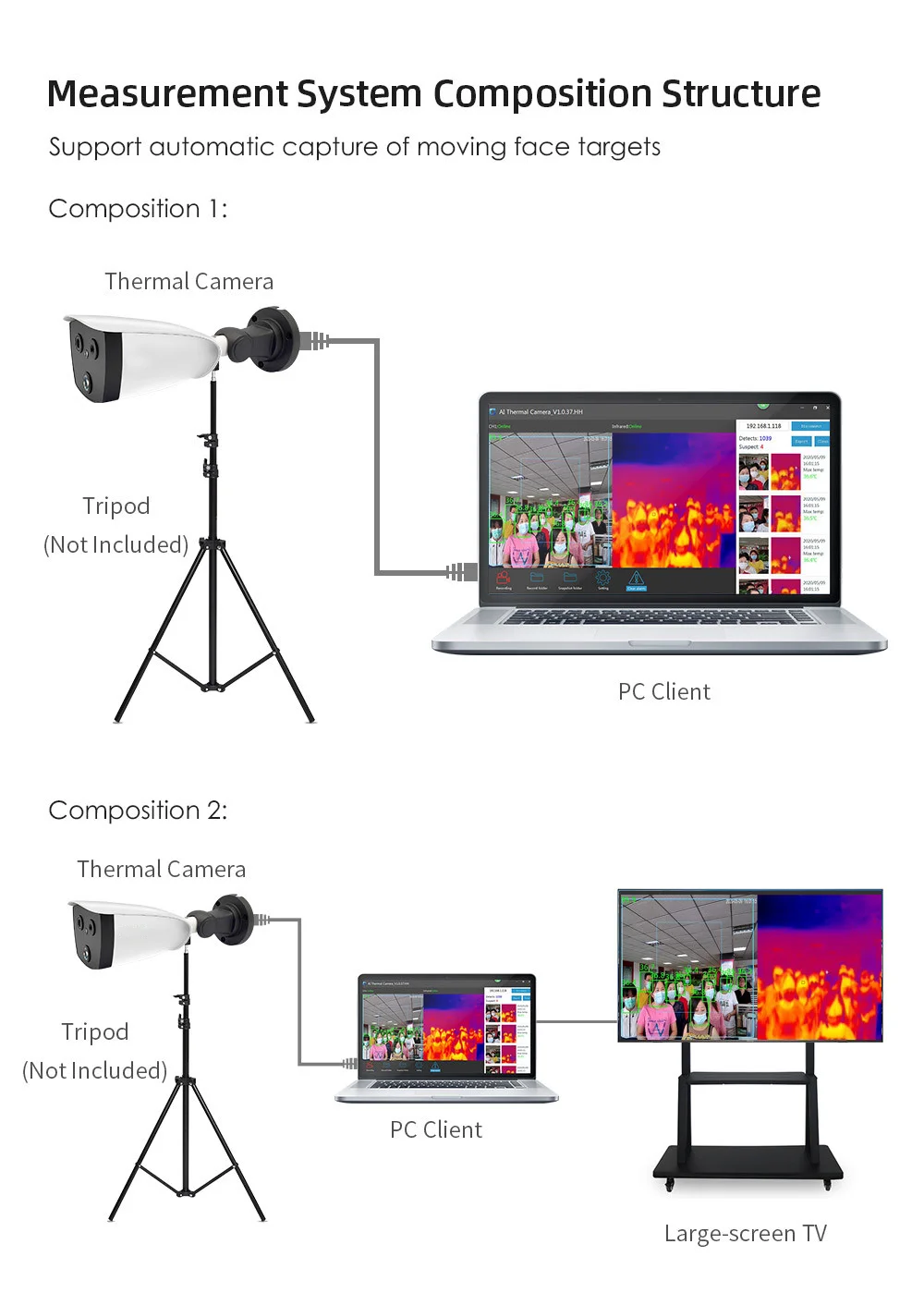

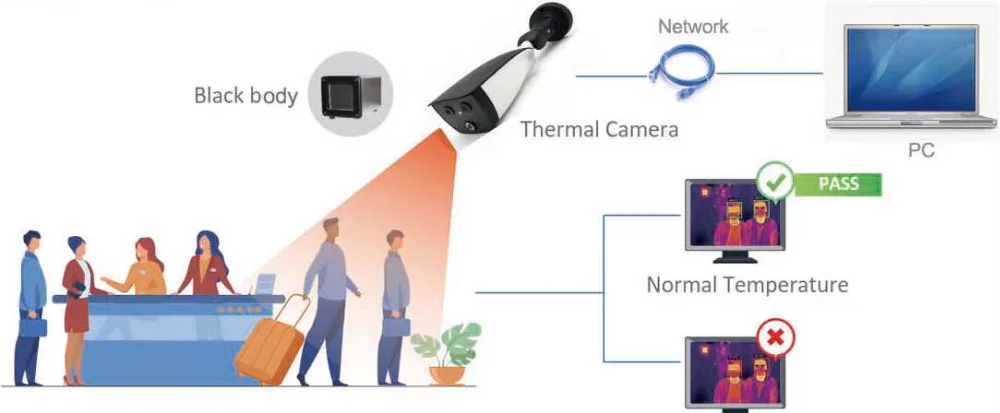

Model AP-TI003 Thermal & Optical Bi-spectrum Network Camera,which is capable of highly accurate body temperature measurement, to within ±0.3 °C,The camera features a built-in Al algorithm for multi-person measurements up to 3m distances, enabling fast and non-contact access.Perfect for adjunct use in hospitals, sub-acute health settings, public areas (i.e. airports), and more.Also can be widely used in close-range scene monitoring, such as indoor fire prevention, warehouse fire prevention, charging pile temperature monitoring and other fields.






LS-TI003双目热成像详情页_01LS-TI003双目热成像详情页_02LS-TI003双目热成像主图1LS-TI003双目热成像主图2 - 副本LS-TI003双目热成像主图5LS-TI003双目热成像详情页_0375694F04-377E-408b-9F79-A2D66F444A2D6FE71EC0-DDE8-428d-B218-6B0E6FDF5BBBLS-TI003双目热成像详情页_05solutiionLS-TI003双目热成像详情页_08LS-TI003双目热成像详情页_09



Mode

AP-TI003

Thermal

Image Sensor

Vox Uncooled Focal Plane Arrays

Resolution

256x192

Pixel Interval

12pm

NETD

Less than 60 mK (@25°C.F#=1.1)

Aperture

F1.0

Field of View

35° x 27° (H x V)

Optical

Image Sensor

1/2.8"2.0M Pixel CMOS

Resolution

1920x1080P

Min. Illumination

Color: 0.005Lux @ (F1.2, AGC ON), B/W 0.001 皿@ (F1.2, AGC ON)

Field of View

84° x 45° (H x V)

Focal Length

4mm

Shutter Speed

1s to 1/100,000s

White Balance

Auto/Manual/ATW (Auto-tracking White Balance)/lndoor/Outdoor/Daylight Lamp/Sodium Lamp

Day& Night

ModeiR cut filter with auto switch

WDR

80 dB

Feature

Bi-spectrum Image Fusion

Fusion view of thermal view and overlaid details of the optical channel

Picture in Picture

Combines details of thermal and optical image PIP, overlay thermal image on optical image

Smart Function

Face snapping

Built-in deep learning Al algorithm, Supports simultaneous detection of

20-30 faces

Temperature Measurement

Support global and local temperature

Temperature Range

From-15°C to +150°C

Temperature Accuracy

Target temperature 35°C A 38°C ±0.3 °C

Target temperature 20°C A 33°C ±0.6 °C

Target temperature 38°C A 50°C ±0.6 °C

Network

Main Stream

Thermal: 25fps(1920 x 1080, 1280 x 720)

Sub Stream

Thermal: 25fps(704 x 576, 352 x 288)

Video Compression

H.264 (Baseline/Main/High Profile) /MJPEG/H.265

Audio Compression

G 711u/G711a/G.7221/MP2L2/G.726/PCM

Protocols

TCP/IP, ONVIF, GB/T 28181, DHCP. RTP, RTSP,PPPoE UPnP, UDP

API

ONVIF (Profile S, Profile G, Profile T), SDK

General

Web Client Language

languages English, Chinese

Power

DC 12V, 0.65A

Work Temperature/H umidity

From -20°C to 55°C; Humidity: 95% or Less

Protection Level

IP66

Dimension

246 mm x 101 mm x 81 mm (with bracket)

Weight

Approx. 1.0 kg



High sensitivity thermal module with 256 x 192 resolution;

NETD is less than 60 mk (@25° C, F#=1.0);

Supports contrast adjustment;

Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR;

Up to 15 palettes of adjustable color;

Reliable temperature-anomaly alarm;

Temperature Range From -15°C to +150°C ;

High quality optical module with 2 MP resolution; Bi-spectrum image fusion, picture-in-picture preview; Support for capture and save in PC of personnel in and out
